Professional installation of 240V outlets, appliance circuits, EV charger circuits, and sub-panel feeds. Proper sizing, wiring, breaker installation, and permit coordination included.
From EV chargers and hot tubs to air conditioners and workshop equipment, AMY Electric installs dedicated circuits to NEC and LA code requirements. We ensure proper breaker sizing, wire gauge, and connections for safe, reliable operation.
🔌
240V Outlet Installation
Standard 3-pole 4-wire receptacles for appliances, tools, and equipment. Includes proper grounding and secure wiring to panel.
🔋
EV Charger Circuit Installation
Dedicated 240V circuit for Tesla Wall Connector, ChargePoint, or other Level 2 chargers. Includes proper breaker and conduit.
❄️
Air Conditioner Circuit Installation
Dedicated circuit for central AC, window units, or mini-splits. Proper sizing for startup and running loads.
🛁
Hot Tub & Spa Circuit Installation
GFCI-protected 240V circuit for hot tubs, spas, and jacuzzis. Required by NEC 680 for wet locations.
🍽️
Kitchen Appliance Circuits
Dedicated circuits for electric ranges, ovens, cooktops, and dishwashers. Proper 4-wire receptacles and grounding.
🧺
Laundry Appliance Circuits
Dedicated 240V circuit for electric dryers. Includes proper 4-wire receptacle and grounding.
🏭
Workshop & Tool Circuits
Dedicated circuits for air compressors, welders, table saws, and other workshop equipment. Proper sizing and receptacle type.
📦
Sub-Panel Feed Installation
Installation of a sub-panel fed from your main panel. Ideal for garages, additions, or areas needing multiple circuits.
Recent Projects
Dedicated Circuit Project Photos
Browse representative project photos from electrical work across Greater Los Angeles. Equipment and scope vary by property.

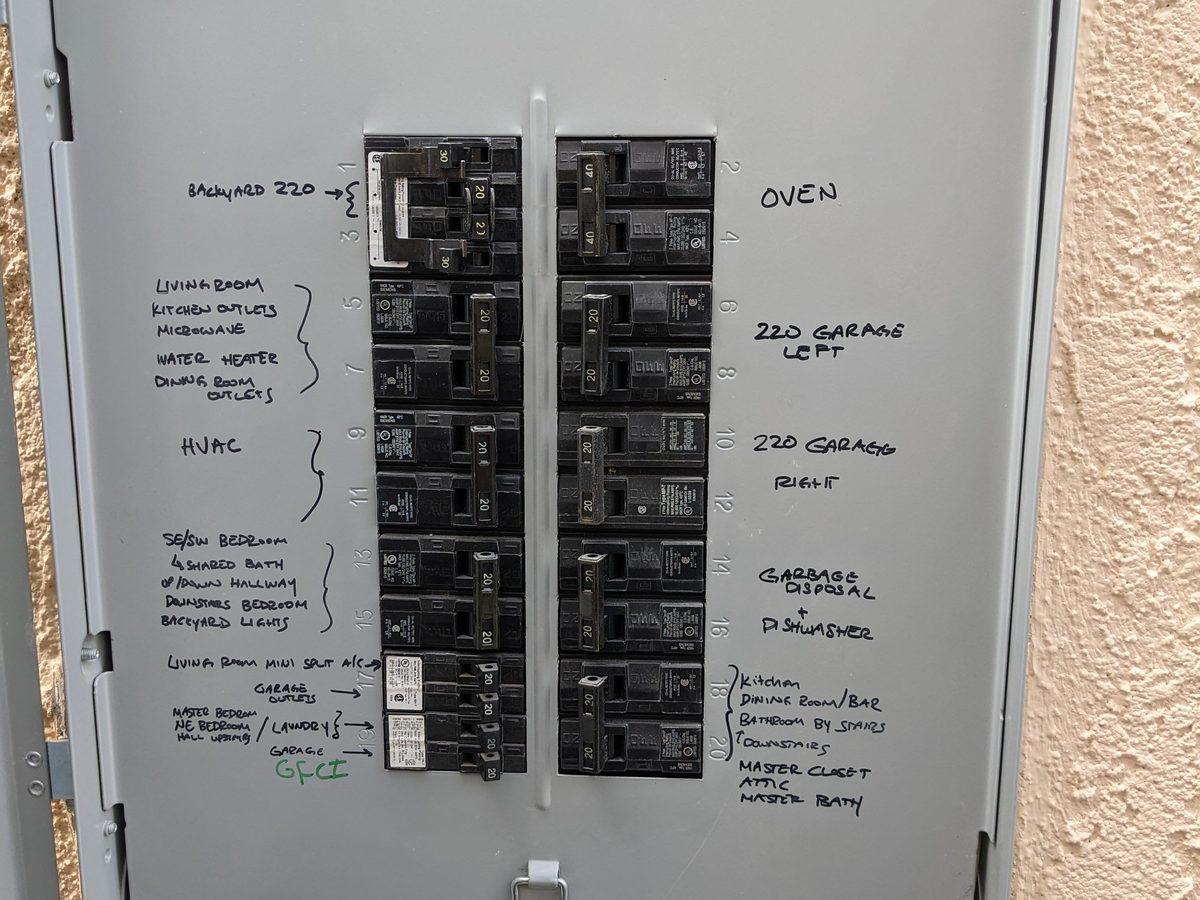

Subpanel with clearly labeled dedicated circuits

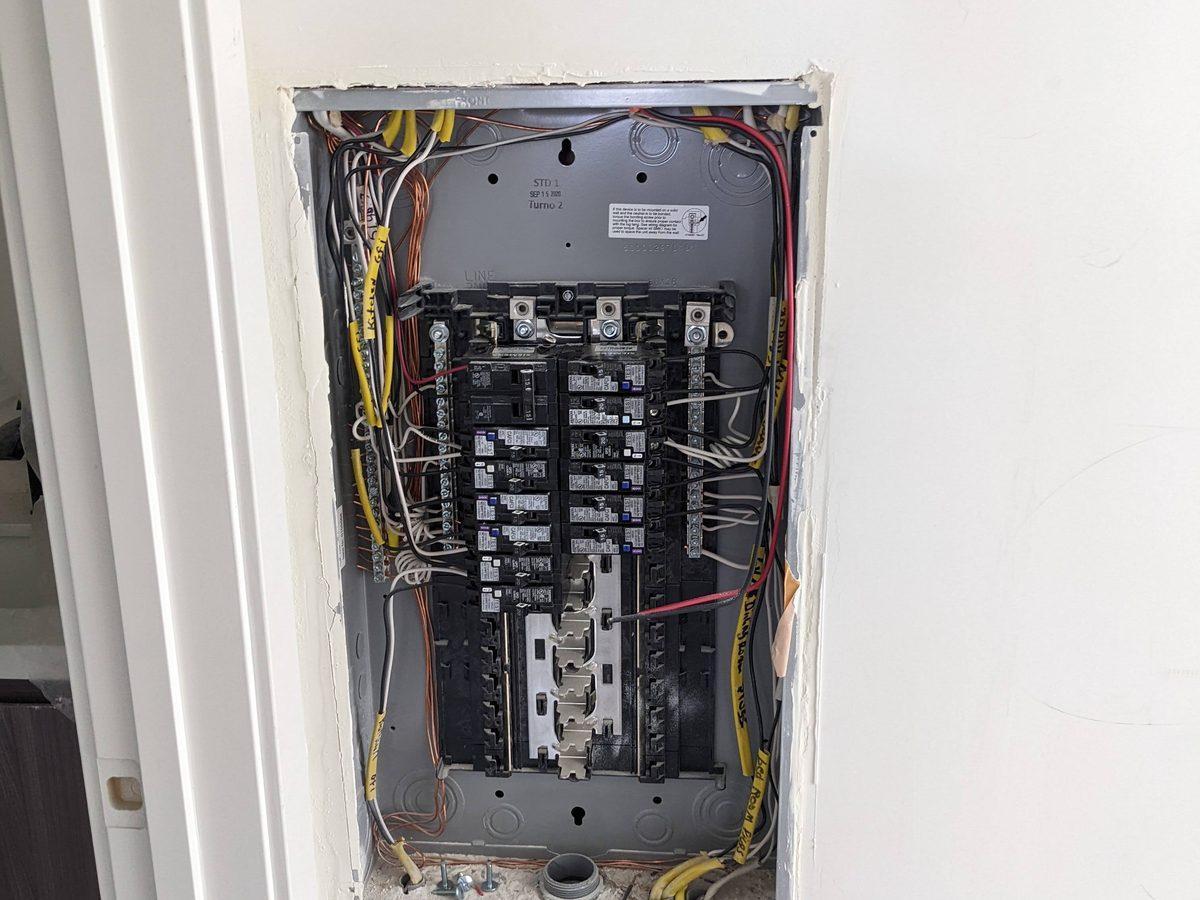

Dedicated circuit panel in finished space
How It Works
Dedicated Circuit Installation Process
1
Assessment & Load Calculation
We evaluate your electrical panel, identify available capacity, and calculate the load for your new circuit. We recommend the correct breaker size and wire gauge.
2
Permit & Planning
We file for the electrical permit with LADBS. Most dedicated circuits require a permit for safety and code compliance.
3
Power Off & Safe Work
We shut off power at the panel, verify it's dead, and work using insulated tools and PPE.
4
Wiring & Installation
Run new wiring from panel to outlet location. Install proper receptacle, breaker, and conduit as needed. Secure all connections.
5
Testing & Walkthrough
We test the circuit for proper voltage, polarity, and grounding. Show you the new breaker and label it before we leave.
Investment
Dedicated Circuit Installation Costs
Service
Typical Range
240V Outlet Installation (no new wiring)
$300–$600
240V Outlet Installation (new wiring run)
$500–$900
EV Charger Circuit Installation
$500–$1,200
Air Conditioner Circuit Installation
$400–$800
Hot Tub Circuit Installation
$600–$1,200
Kitchen Appliance Circuit (range/oven)
$400–$800
Laundry Appliance Circuit (dryer)
$300–$600
Workshop Circuit (per outlet)
$300–$600
Sub-Panel Feed (60A sub-panel)
$800–$1,500
Price per circuit. Includes breaker, wiring, receptacle, and labor. Free detailed estimate provided.
Do I need a permit for a dedicated circuit in Los Angeles? ▾
Yes — installing a new dedicated circuit in Los Angeles requires a permit through the local building department, regardless of whether it is for a major appliance like a refrigerator, washing machine, or EV charger, or for a smaller dedicated circuit for a home office or entertainment system. Any new wiring that adds a circuit to your electrical panel requires a permit because it involves installing new cable or conduit from the panel to the outlet location, adding or replacing a breaker in the panel, and making connections that must be verified by a building inspector. The permit fee for a dedicated circuit typically ranges from $50 to $150 depending on your specific city within Los Angeles County. AMY Electric handles all permitting for every dedicated circuit installation we perform. The rough-in and final inspections that come with the permit provide important verification that the circuit is sized correctly for its intended load and that all connections are safe and code-compliant.
Can I install a dedicated circuit myself? ▾
While California law allows homeowners to perform electrical work on their own single-family dwelling through an owner-builder permit, there are significant practical and safety reasons to hire a licensed electrician for dedicated circuit installation. Installing a dedicated circuit requires pulling cable or conduit from the panel to the outlet location — often through attics, crawlspaces, or finished walls — making proper connections at both the breaker and the outlet, correctly sizing the wire gauge for the breaker amperage and the length of the run (voltage drop calculations), and ensuring the new circuit does not overload the panel's total capacity. Mistakes in any of these areas can create fire hazards that may not be immediately detectable. Additionally, dedicated circuit work requires permits and inspections, and if your work fails inspection, you are responsible for diagnosing and fixing the problem yourself. Most homeowners find that the relatively modest cost of professional installation is well worth the safety and peace of mind.
How do I know if my panel has capacity for a new circuit? ▾
Determining whether your panel has capacity for a new dedicated circuit requires two separate checks: physical space in the panel and electrical load capacity. First, check if your panel has an open breaker slot — if all slots are filled with breakers, you may need a tandem breaker (which fits two circuits in one slot) or a subpanel to add capacity. More importantly, your panel's total electrical load must be calculated per National Electrical Code Article 220 to ensure the new circuit will not overload the main service. This calculation involves adding up the existing loads (lighting, appliances, HVAC, etc.) plus the new circuit's expected load (typically 1,440 to 1,920 watts for a 15- or 20-amp dedicated circuit) and verifying the total does not exceed 80% of your main breaker rating. A licensed electrician can perform this load calculation quickly and determine whether a panel upgrade is needed before installing your new circuit.
What's the difference between a 240V outlet and a 120V outlet? ▾
The primary difference between 240V and 120V circuits is the voltage delivered and the applications they serve. A standard 120V outlet — the typical three-prong outlet found throughout most Los Angeles homes — uses one hot wire and one neutral wire and supplies up to 1,920 watts for 15-amp circuits or 2,400 watts for 20-amp circuits, making it suitable for lighting, electronics, small appliances, and general-purpose receptacles. A 240V outlet uses two hot wires (each carrying 120V out of phase) and delivers significantly more power — up to 4,800 watts for a 20-amp circuit, 7,200 watts for a 30-amp circuit, or 12,000 watts for a 50-amp circuit. 240V circuits are required for major appliances including EV chargers, electric ranges and ovens, central air conditioning units, electric water heaters, clothes dryers, and welders. 240V outlets have a distinct configuration with different plug shapes to prevent accidental connection to 120V equipment.
How long does dedicated circuit installation take? ▾
A straightforward dedicated circuit installation where the panel is easily accessible and the wiring run is through an open attic or crawlspace with minimal obstructions typically takes 2 to 4 hours. Installations requiring wiring through finished walls — which involves cutting access holes, fishing cable, and patching drywall — take 3 to 6 hours depending on the complexity of the wall construction and the distance from the panel to the outlet location. Longer wiring runs exceeding 75 feet require larger wire gauges to compensate for voltage drop, which adds time for more challenging cable pulls. Installations that require a subpanel, conduit work, or trenching for outdoor locations can take 4 to 8 hours or more. We always provide a specific time estimate during your free on-site evaluation based on the actual conditions of your home.
